800x620mm Paper Die Cutting Machine 7000S/H With Waste Stripping

Name: 800x620mm Paper Die Cutting Machine 7000SH With Waste Stripping
Brand: PRINTYOUNG
Price: 1 USD

Wholesale 800x620mm Paper Die Cutting Machine 7000S/H With Waste Stripping from china suppliers

Brand Name : PRINTYOUNG

Model Number : AEM-800TQ

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : L/C, T/T

Supply Ability : 1 Set/Sets per Month

Delivery Time : 90 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Max paper size : 800 x 620 mm

Min paper size : 340 x 280 mm

Max cutting size : 770 x 600 mm

Die frame inner size : 820 x 628 mm

Cutting plate size : 826 x 628 mm

Max bronzing size : 780 x 600 mm

Min gripper needle size : 7 mm

Cutting precision : ≤±0.1 mm

Bronzing precision : ≤±0.125 mm

Max cutting pressure : 200 T

Max cutting speed : 7000 S/H

Max bronzing speed : 6500 S/H

Foil roll max diameter : Φ250 mm

Crosswise foil width : 15~600 mm

Horizon foil axle : 2 pce

Heating area : 8 pce

Temperature range : 50~199 ℃

Pre-stacking height : 1150 mm

Delivery stack height : 1000 mm

Application : Cardboard: 0.1～2 mm Corrugated paper: ＜4 mm

Main motor power : 7.5 KW

Heating area power : 16 KW

Total power : 45 KW

L (+ pre-stacking )x W（+ platform）x H : 5150(+1360)x2200(+1300)x2260 mm

Weight : 10 T

Contact Now

Products Description

AEM-800TQ Automatic Hot Foil Stamping Die Cutting Machine

Features

★ Complete design, accurate installation, high stability, high security, low noise.
 ★ Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.
 ★ High precision intermittent mechanism, high cutting precision, running steadily.
 ★ Adopt European feeder technology, suction adjustable, stable, precise, good paper applicability.
 ★ Non-stop feeding, pre-stacking and delivery mechanism can shorten the auxiliary time, improve the efficiency.
 ★ Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
 ★ Pneumatic die locking device, die frame fixed more steadily, accurately and time saving.
 ★ Front lay, side lay, feeding device fine tuning device, paper positioning more accurate.
 ★ Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.
 ★ (optional) waste stripping section has 3 linked frames, human-friendly design, easy to install and uninstall the waste stripping plate.
 ★ Electronic control modular design, adopt imported electronic components, ensure the accuracy and reliability.
 ★ Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, troubleshooting more convenient.
 ★ Adopt imported server control system for foil stamping, feeding and collecting aluminum foil accurately.
 ★ Adopt industrial tablet PC, touch screen input data, realize automatic programming, greatly saving aluminum foil.
 ★ Temperature control system has 8 heating area, temperature setting separately, thermostatic control.
 ★ Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
 ★ Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability.

Technical Parameters

AEM-800T Main Technical Parameters
Max paper size	800 x 620 mm
Min paper size	340 x 280 mm
Max cutting size	770 x 600 mm
Die frame inner size	820 x 628 mm
Cutting plate size	826 x 628 mm
Max bronzing size	780 x 600 mm
Min gripper needle size	7 mm
Cutting precision	≤±0.1 mm
Bronzing precision	≤±0.125 mm
Max cutting pressure	200 T
Max cutting speed	7000 S/H
Max bronzing speed	6500 S/H
Foil roll max diameter	Φ250 mm
Crosswise foil width	15~600 mm
Horizon foil axle	2 pce
Heating area	8 pce
Temperature range	50~199 ℃
Pre-stacking height	1150 mm
Delivery stack height	1000 mm
Application	Cardboard: 0.1～2 mm Corrugated paper: ＜4 mm
Main motor power	7.5 KW
Heating area power	16 KW
Total power	45 KW
L (+ pre-stacking )x W(+ platform)x H	5150(+1360)x2200(+1300)x2260 mm
Weight	10 T

Configuration

800x620mm Paper Die Cutting Machine 7000S/H With Waste Stripping

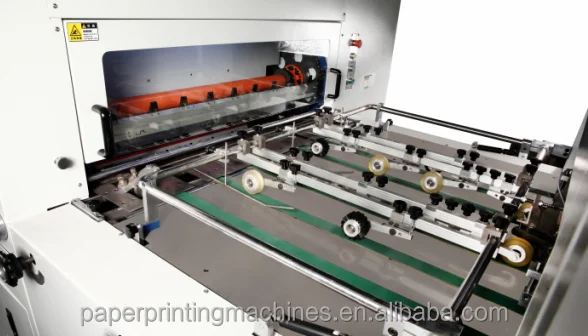

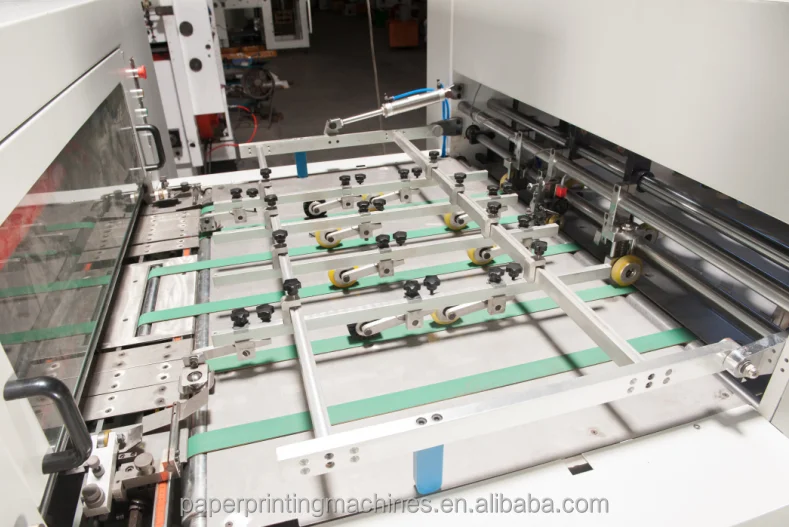

Feeding Section

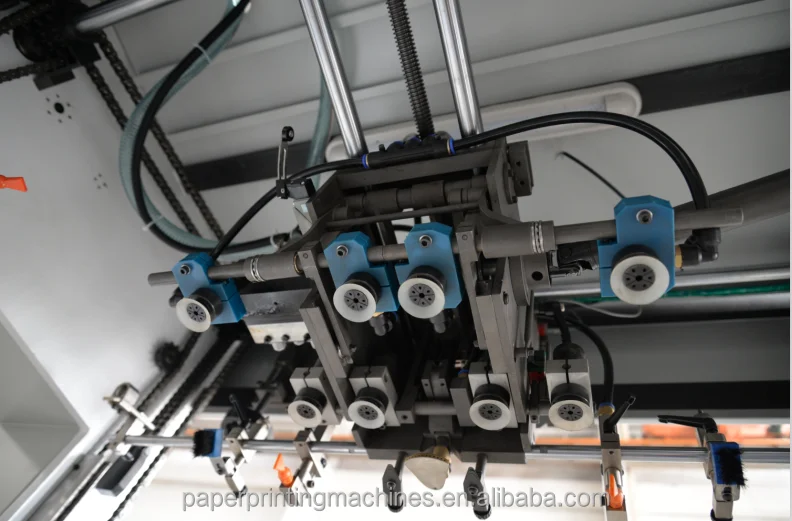

★European technic precise feeder, fit both paperboard and corrugated paper.4 suction 4 send, can adjust angle and height of suction nozzle according to the paper distortion.
 ★Double side lay (pull and push).
 ★Feeding device fine tuning, non-stop adjust.
 ★Electronic double detector.

★Main, secondary feeding device no-stop switch.
 ★Wear-resisting PU pressing wheel.
 ★Dual purpose loader.
 ★Feeding time fine tuning device.
 ★Additional carriage rod 1 set, carriage plate 2 set.

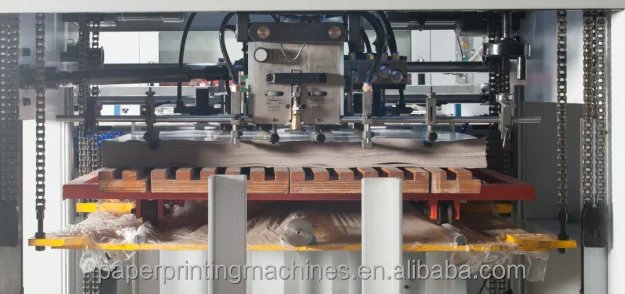

 ★(Optional) pre-stacking device 1 set

Main Machine Section

★Pressure-bearing part is made of high ductile iron QT500, high strength, never deform.
 ★Alloy crankshaft with special process treatment.
 ★Wear resisting worm, worm gear.
 ★Convenient die flipping device.
 ★Cycling lubrication oil supply system with high pressure oil pump from Taiwan
 ★High precision interval device.

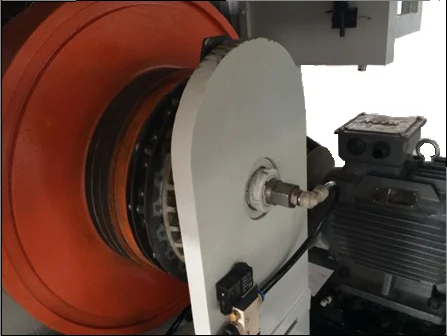

★Pneumatic brake clutch device from Italy
 ★Japanese SMC rotary joint.
 ★Import gripper bar chain.
 ★Pneumatic die locking device.
 ★High hardness, strength Ti-Al alloy gripper.
 ★Precise pressure adjust device.
 ★PLC and man-machine interface from Taiwan.
 ★Additional gripper 1set, die cutting 1set,die frame 1 set

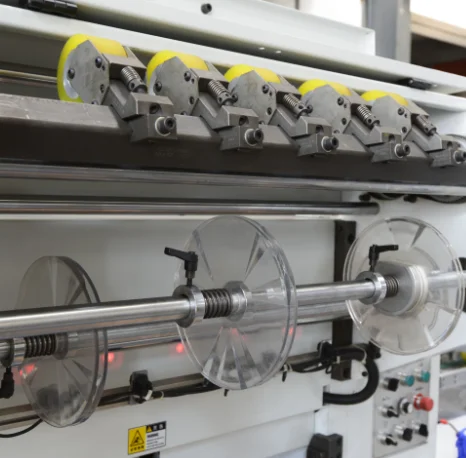

Stamping Section

★Industrial tablet PC, screen touch input data, realize automatic program optimization, saving foils.
 ★Imported servo motor and control system, precisely feeding foil.

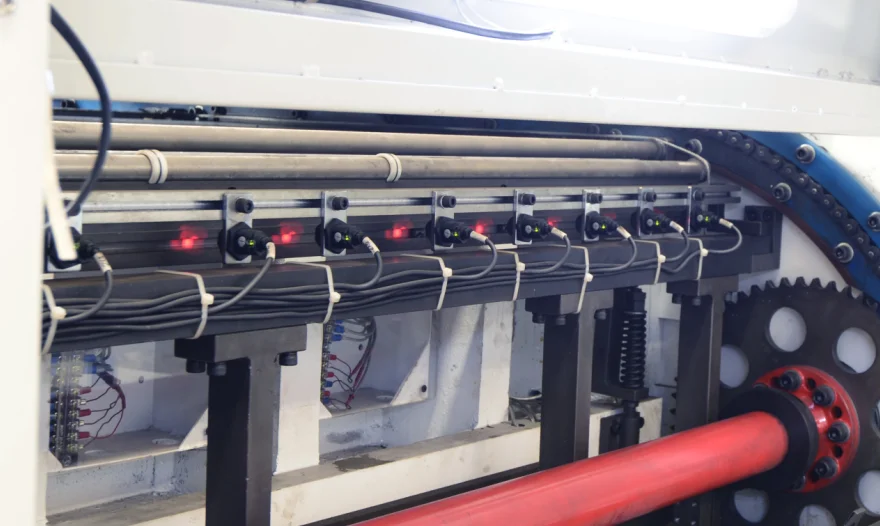

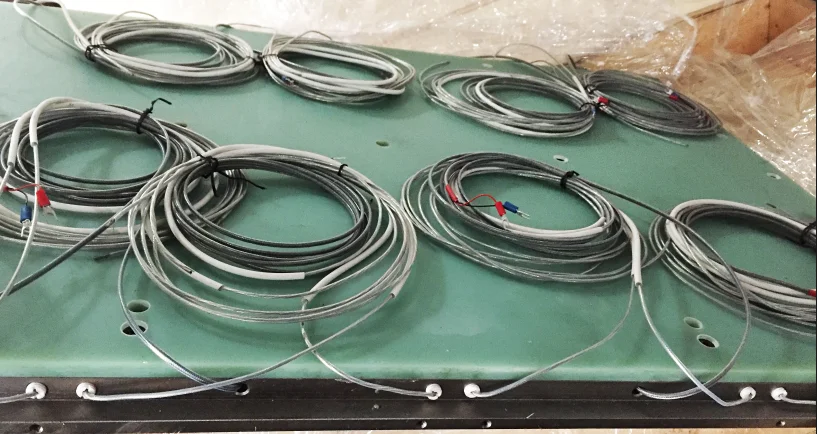

 ★Separate setting temperature of 8 heating area, thermostatic control.
 ★Electronic pressure control system, during

bronzing, if there is no paper, there is no pressure.
 ★Convenient crosswise foil placing device.
 ★Special material honey comb heating plate helps locating the bronzing plate.
 ★Adopte RTCr0.8 heating resist cast iron, no deformation while heating, high strength and high durability.

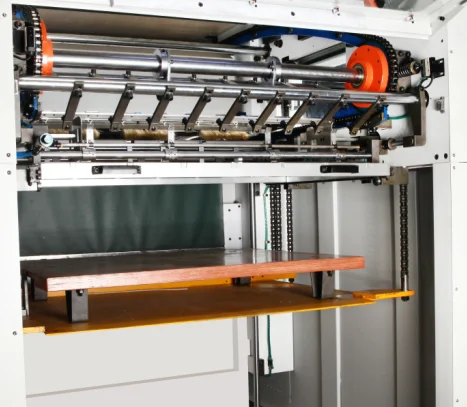

Collection Section

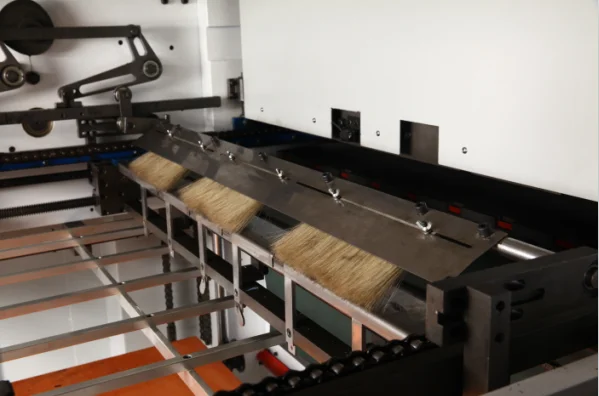

★Automatic arranging device, double blowing device ensure the paper can be well collected whether thick or thin.
 ★Digital display touch screen in collection section makes operation convenient
 ★Control panel for human-friendly operation.

★Optoelectronic sensor makes the stack neat.

★Collection automatic lift control system.
★Secondary manual collection
 ★Main chain protection device.
 ★Roll back prevent device.
 ★Non-stop collection device

Customer

Company Profile

Why Choose Us

Product packaging

FAQ

Q1: Are you a manufacturer or a trading company?A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?
A: Normally about 10-20 days.

Q4. What is the delivery time?
A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?
A: 1)We provide training in our factory for free
2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will
 give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material.

Q11. What’s the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?
A: Shanghai company is 12 years old, the factory is more than 20years.

Q14. How many clients do you have?
A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
