800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min

Shanghai Printyoung International Industry Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min

  • 1
  • 2

Brand Name : PRINTYOUNG

Model Number : AS-800

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : L/C, T/T

Supply Ability : 5 Set/Sets per Month

Delivery Time : 45 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Showroom Location : Egypt, Italy, Morocco, Algeria, South Africa

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Condition : New

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 380V

Dimension : 12x1.23x1.4m

Weight : 4.5T

Warranty : 1 Year

Key Selling Points : High-accuracy

Paper Material : Cardboard 210-800gsm,E/N/F Flute

Max.Speed : 300m/min

Max.Thickness of Folded Box : 12mm

Way of Folding : Fold 1 and fold 3 are 180°and 135°,fold 2 and fold 4 are 180°

Power Supply : 3P 380V 50HZ

Blank Width : 800mm

Total Power : 12.7kw

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : Egypt, Italy, Morocco, Algeria, South Africa

After-sales Service Provided : Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

Contact Now

Products Description
Technical Parameters
Model
AS-800
Paper Material
Cardboard 210-800gsm , E/N/F Flute
Max.Speed
300m/min
Max.Thickness of Folded Box
12mm
Power Supply
3P 380V 50HZ
Blank Width
800mm
Length x Width x Height
12x1.23x1.4m
Net Weight
4.5T
Total Power
12.7kw
Way of Folding
Fold 1 and fold 3 are 180° and 135°,fold 2 and fold 4 are 180°
Configuration
800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min 800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min

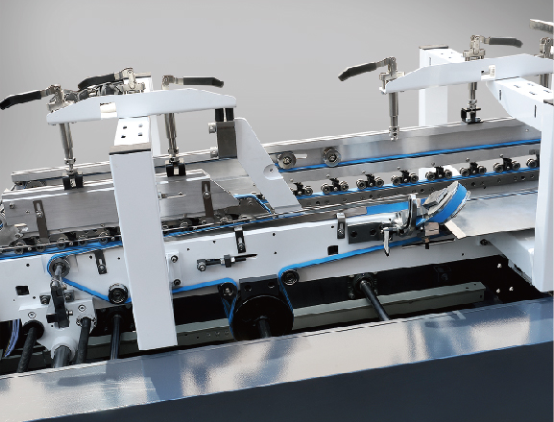

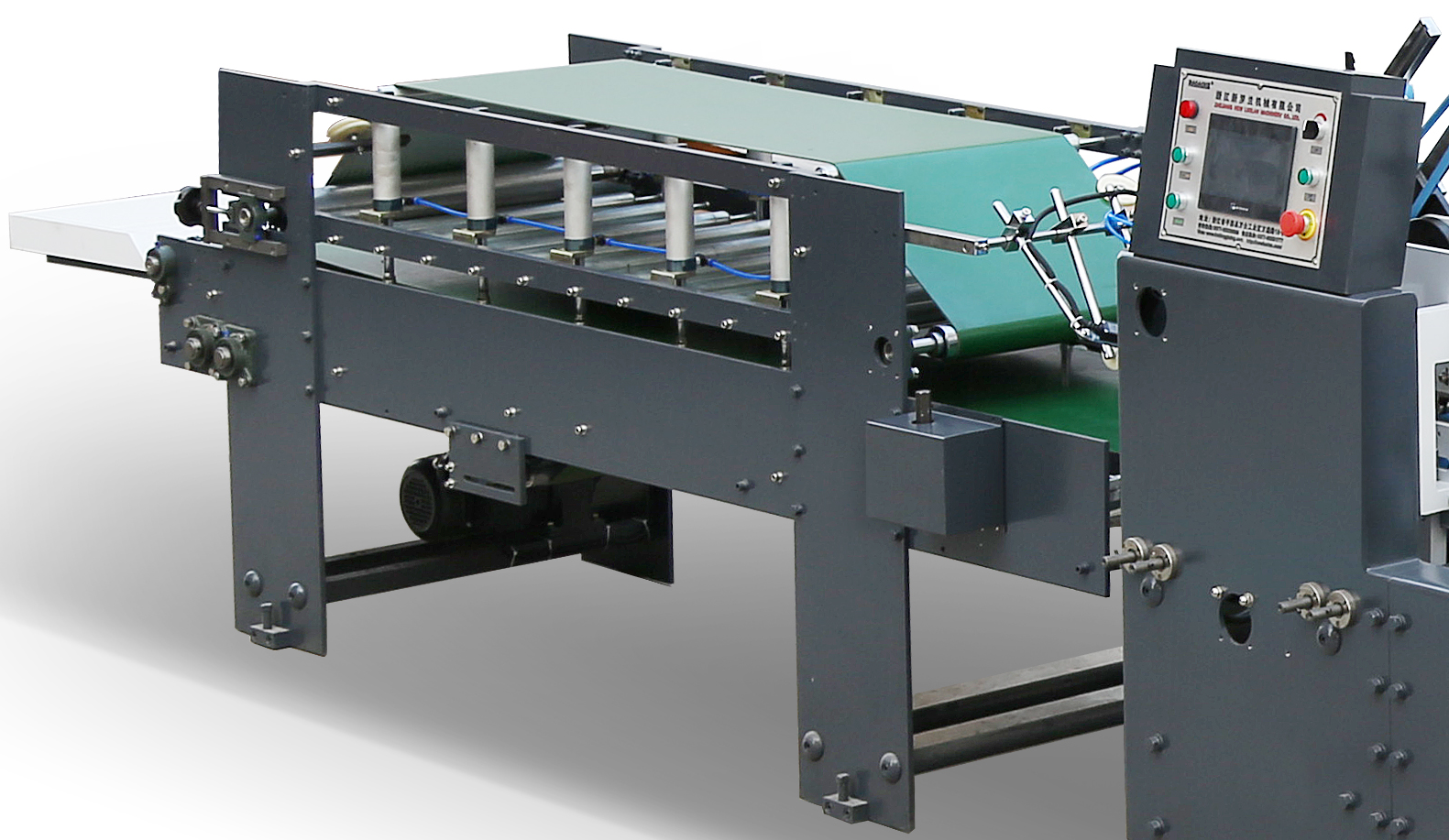

1.Paper Feeding Section 2.Aligner Section

6pcs Adjustable feeding belts to ensure easy adjustment, stable Equipped with auto-correction device to correct the
and smoothly feeding.Continuously Variable Speeder to ensure obliquity and ensure the correct feeding.
feeding internal and stable transmission.
800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min 800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min

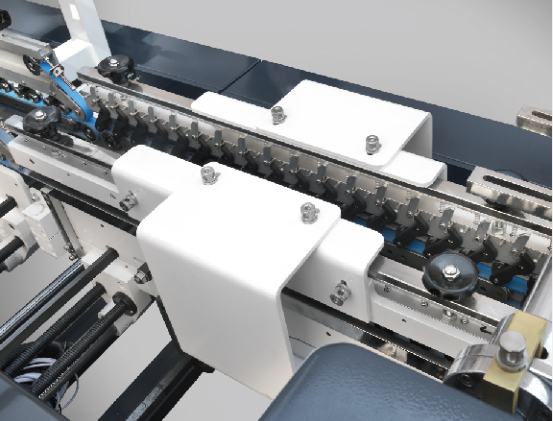

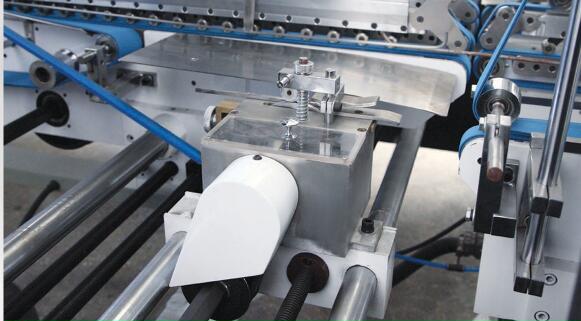

3.Pre-Folding Section 4.Lock Bottom Section

Double-board structure with a set of pre-folding knife.Pre-fold 3-board tracking structure, upper glue can make bottom-locked
angle is 180°and 135°, especially suitable for small but high box automatic gluing and forming.The entire bottom-lock part is
cartons, more satisfactory while rapid prototyping installed in a reversible bracket, substantially reduce the swap
adjustment time of bottom-fold box and the other types of box.
800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min 800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min

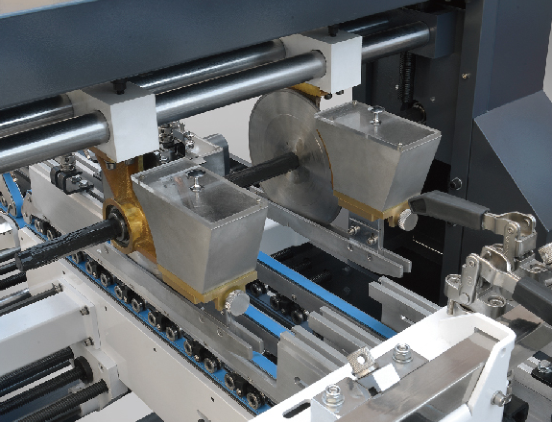

5.Lower Gluing Tank 6.Folding and Closing

Equipped with the lower gluing tank. The folding is equipped with the driving belt, folding belts have
corrective function, extension work, make the box forming more stable.
800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min 800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min

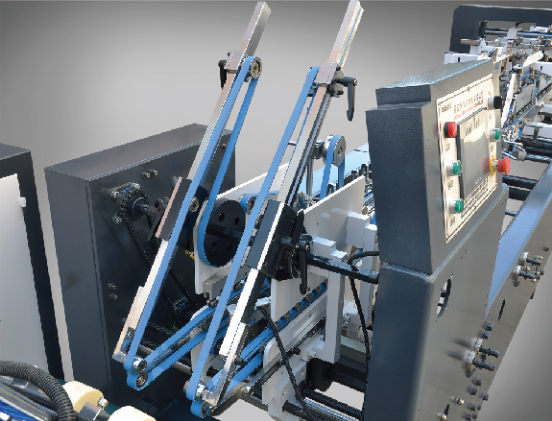

7.Trombone Section 8.Transmission

Adjust the pressure easily and reliably to ensure the gluing Press: Equipped with one-touch pneumatic pressure adjustment,
quality;Equipped with pneumatic counting device which easy operation.Press has two functions:
makes the counting conveniently. The press is equipped with 1.waiting, when feeding is paused, press will auto enter into
independent speeder. The operator can set the collecting waiting state;
speed 2.Stroke switch, when the paper is received incorrectly,
the machine is automatically suspended.

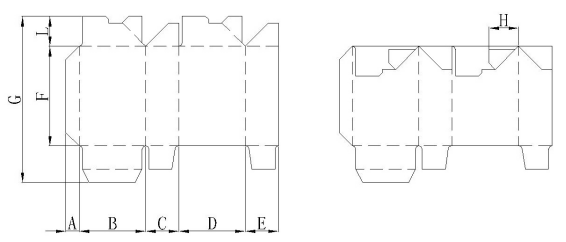

Samples Parameters

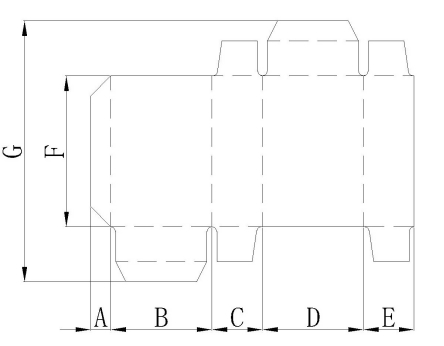

Straight Line Box
Model
800Type
Way of Folding
Two carriers
B+C+D+E
130-800
C+D(Min)
65
F
70-700
G(Max)
700
D+E(Max)
300
G(Max)
400

800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min 800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min
Straight Line Box Crash Lock Bottom Box
Crash Lock Bottom Box
Model
800Type
Way of Folding
Two Carriers
B+C+D+E
130-800
C+D(Min)
65
F
70-700
G(Max)
700
H(Min)
25
L(Max)
30-100
Application
800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min
800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min 800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min
Customer
800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min
Company Profile
800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min
800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min
800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min
Why Choose Us
800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min
Packaging&Shipping
800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min 800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min 800gsm Cardboard Hook Bottom Lock Box Folding Machine 300m/Min

FAQ


Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.
